Description

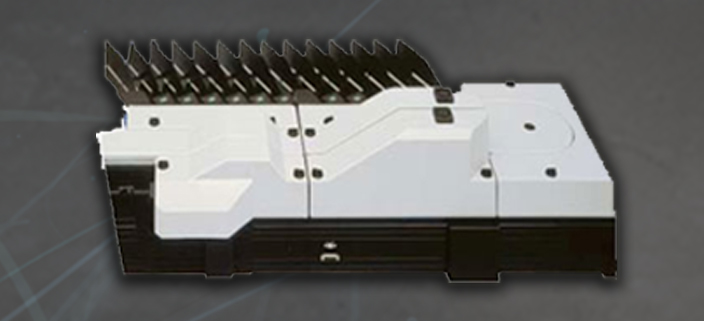

ROTOTYPE CBX-6000 Cheque Sorter
The CBX 6000V is an advanced system with high performance created to process several kinds of documents, such as bank cheques, payment voucher, postal payment forms, restaurant tickets, coupons, etc. CBX 6000V can automatically feed, read, encode, cancel, print, scan, and sort..
Features
AUTOMATIC FEEDER
Capacity 500 doc. approx. (1500 doc. capacity available as option) Single feed capacity - Double feed detection
READER
Magnetic CMC7, CMC0, E13B Optical characters recognition OCRA, OCRB, Bar code.The head is adjustable to any height position. Optically and magnetically encoded documents may be mixed because the system automatically recognizes the different kinds of characters.
ENCODER
High quality CMC7, E13B, OCRB encoding system.
ENDORSER- PRINTER
Front or rear rotary drum with or without date and personalized logo.Front or rear dot matrix 9 needles printer.
IMAGE ACQUISITION MODULE FRONT-REAR
Single or dual sided. Resolution: 200 DPI, 100 DPI programmable Grey levels: 16 or black & white
MICR VALIDATION
Additional Micr reader is an available option.
SORTER
Single pocket module
2 pockets module
6 pockets module
Capacity:
200 documents per pocket approx.
Maximum number of pockets:24 (4 sorter modules)
FLEXIBILITY
The CBX 6000V is modular so that the various components may be connected to form a variety of configurations. The possibilities are designed to fulfill the many requirementsof users in banking, finance houses and public utilities. Addition and substraction of modules is easily carried out.
ECONOMY
Rototype’s CBX 6000V is a quality product at a competitive price. Modular construction in its design ensures even more economical use enabling the system to grow and, if necessary, change, thus keeping pace with the users’s needs, without obsolescence. Sorter modules may be added in six pockets units, as the need arises.
DESIGN
Rototype’s CBX 6000V state - of - the - art microprocessor control and exceptionally pleasing ultra modern design features; together with user - friendly keyboard operation ensures complete operator acceptance and user satisfaction
Specification
| WIDTH | Min 110 mm | Max 220 mm |
| HEIGHT | Min 60 mm | Max 110 mm |
| WEIGHT | Min 80 g/sqm | Max 120 g/sqm |
| THICKNESS | Min 0,09 mm | Max 0,14 mm |
INTERFACE
Serial RS232 standard
SCSI II standard for image acquisition
| VOLTAGE | 230 VAC | 115 VAC |
| 50 HZ | 60 HZ |
| OPERATION MODE | AMOUNT ENCODING | IMAGE ACQUISITION | PROCESSING SPEED |
| AUTOMATIC | OFF | OFF | 12000 doc/h |
| FAST DRIVEN | OFF | OFF | 12000 doc/hF |
| DRIVEN | OFF | ON or OFF | 6000 doc/h |
| AUTOMATIC | OFF | ON | 10000 doc/h |
| FAST DRIVEN | OFF | ON or OFF | 6000 doc/h |
| AUTOMATIC | ON | ON or OFF | 5000 doc/h |
| DRIVEN | OFF | ON or OFF | 6000 doc/h |
| FAST DRIVEN | OFF | ON or OFF | Not allowed |
Notes
The indicated “processing speed”represents the Hardware capability.The actual throughput will be affected by the processing time in the host computer depending on the Software application
