Product Description

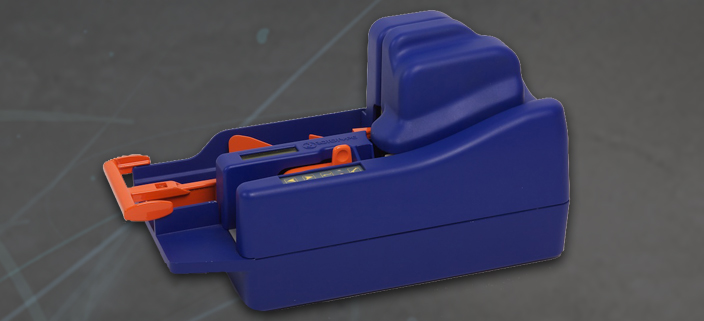

The Rototype DAB 8000 Secure Desk Cheque Scanner is a small and compact high performance document scanner suitable for DESK CHEQUE SCANNER various applications in banking or postal environment.
DAB 8000 gives a very high degree of flexibility which comes up from both its operating modes and its embedded features and options, enabling the Software Application writers to easily build the perfect solution matching the final customer needs.
Product Features
High flexibility
It can work in three different operating modes programmable by the application software.
Free Running
In this mode DAB 8000 processes the document autonomously. The application software job is simply collecting incoming data and images. DAB 8000 endorses by itself and also addresses the document into the accept or reject pocket according to the MICR codeline decoding quality.
Driven
In this mode DAB 8000 feeds the document and generates a “preview” of it sending the codeline to the application software. DAB 8000 stops the document inside awaiting for an Host command which could be an “Accept” or “Reject” command. According to this command after restarting the document, DAB 8000 can endorse or not, scan or not the document and send it to the proper output pocket. The Host command carries also the string to endorse which can be dependent on what has been elaborated from the codeline reading.
Scan Driven
This mode is an enhancement of the MICR Driven mode as the “preview” contains both the MICR codeline and the scanned images. Hence, the “Accept” or “Reject” command issued by the Host can be based on the image inspection also. Upon receiving the host command, DAB 8000 endorses the document, if needed, and rescan the now endorsed document or addresses it into the reject pocket without scanning.
Regardless the operating mode, documents can be driven one by one or in the bulk mode for the highest processing speed.
Product Specification
- DOCUMENT SIZE : LENGTH : 110-220 mm
HEIGHT : 65-110 mm
WEIGHT : 80-140 gr/sqmt
THICKNESS :0,09-1,50 mm - DIMENSIONS : WIDTH : 281 mm
HEIGHT : 188 mm
DEPTH : 132 mm
WEIGHT :2,8 Kg - INTERFACE : USB 2.0 High speed interface
Serial RS232 inteface for service
