Product Description

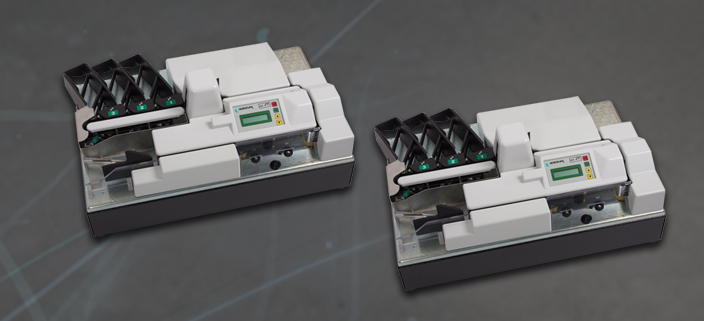

The ERS 3000/4000 is an advanced system with high performance designed to process several kinds of documents, such as bank cheques, payment vouchers, postal payment forms, restaurant tickets, coupons, etc. ERS 3000 can automatically feed, read, encode, cancel, print, scan, and sort.
Product Features
AUTOMATIC FEEDER
Capacity 300 doc. approx. - Double feed detection
READER
Magnetic CMC7, E13B or both Optical characters recognition OCRA, OCRB, E13B and barcode Optically and magnetically encoded documents may be mixed because the system automatically recognizes the different kinds of characters
ENCODER
High quality CMC7, E13B encoding system
PRINTER - ENDORSER
Front stamp rotary drum with personalized logo. Front or rear ink jet simple line text printe
IMAGE CAPTURE
Scanning of both sides of printed and stamped cheques: black/white format 200dpi TIFF with G4 compression and/or 256 level grey scale 100 or 200 dpi, JPEG format
SORTER
3 pockets + 1 reject pocket. Capacity: 200 documents per pocket approx.
Product Specification
- DOCUMENT SIZE : LENGTH : 115 - 220 mm
HEIGHT :60 - 110 mm
WEIGHT : 80 - 120 g/sqm
THICKNESS : 0,09 - 0,14 mm - DIMENSIONS : WIDTH : 620 mm
HEIGHT : 260 mm
DEPTH : 400 mm
WEIGHT : 25 kg - INTERFACE : Serial RS232 standard
TCP/IP Ethernet 10 base-T - VOLTAGE : 115 Vac 60 Hz
230 Vac 50 Hz
